Ergonomic Design: The reader only weighs just 250g.

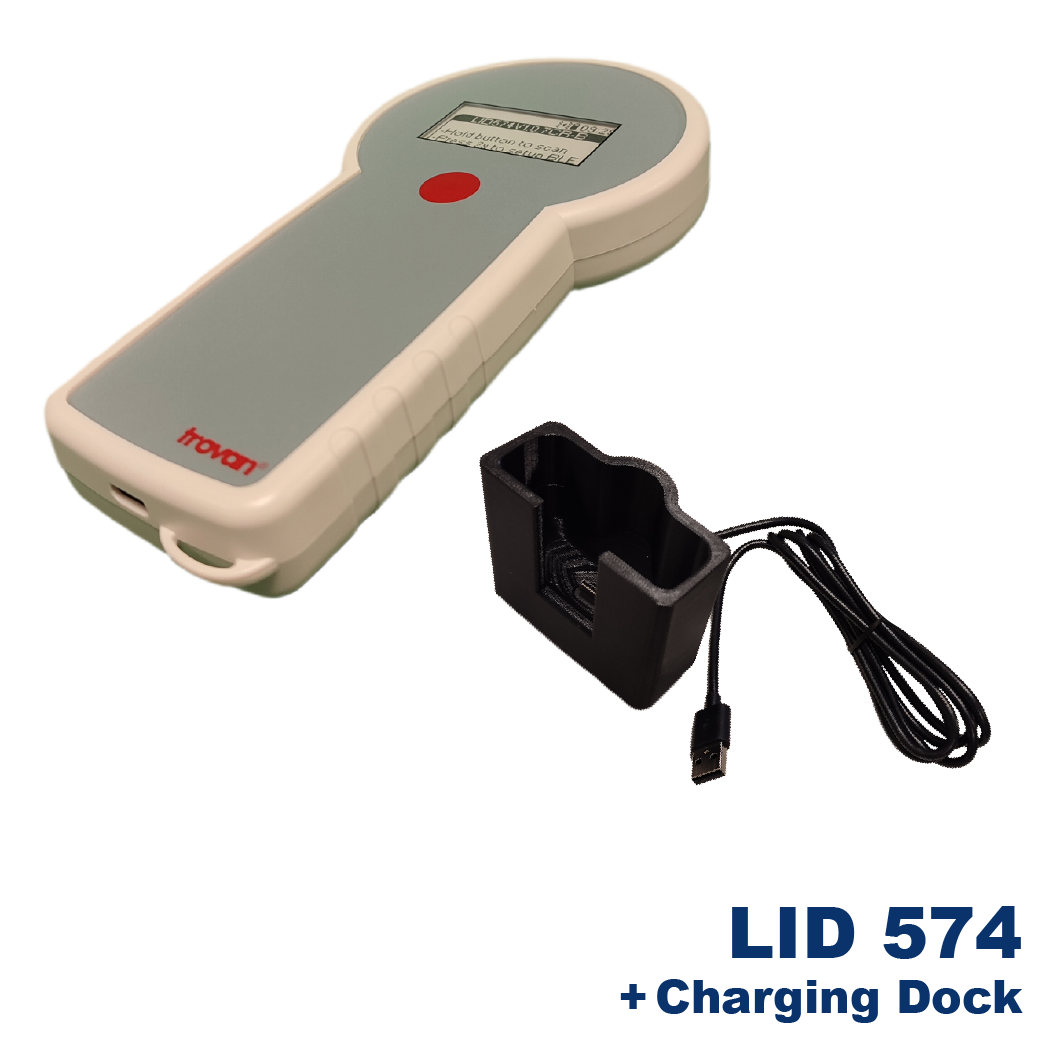

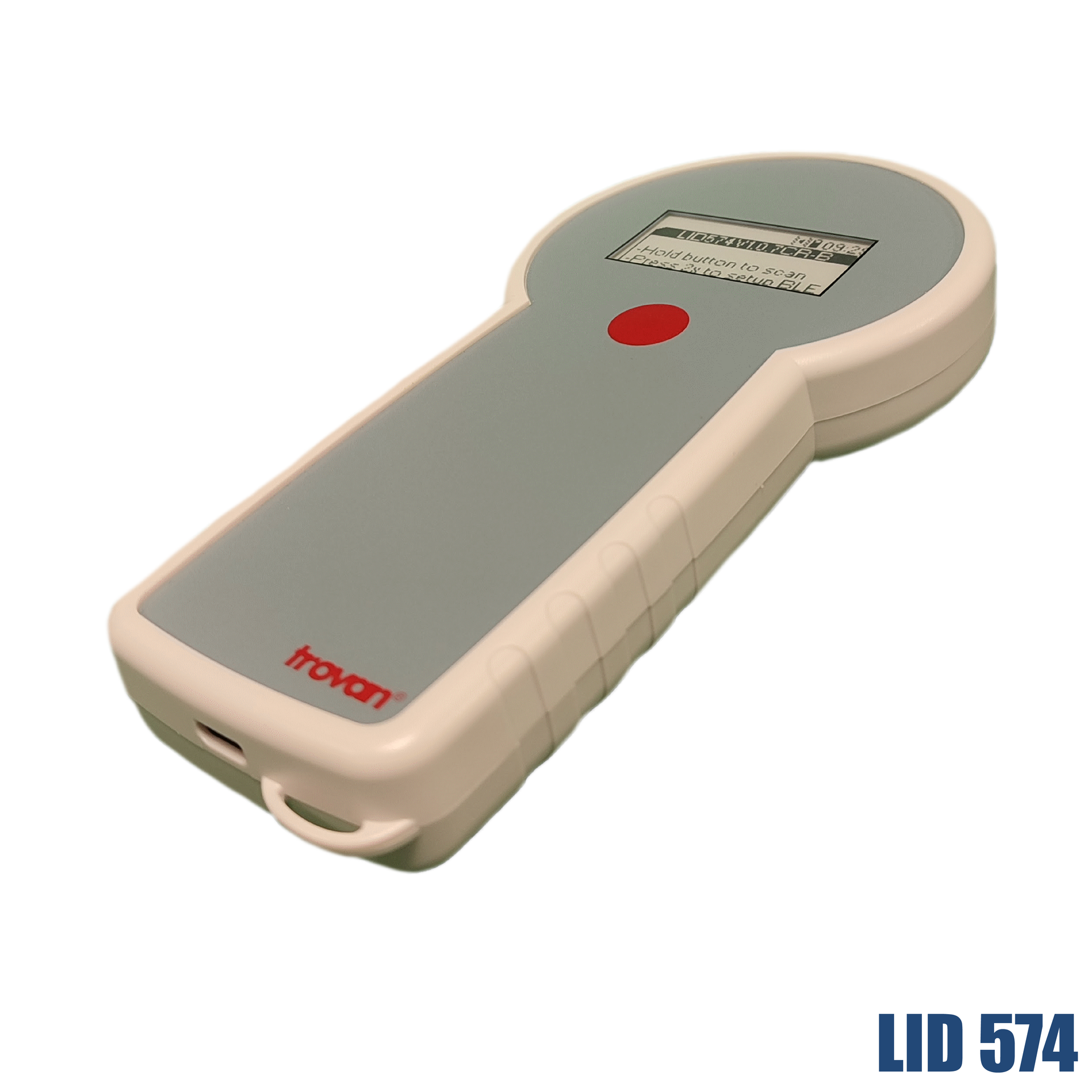

Hello USB-C: The LID 574 is the first Trovan reader to feature USB-C connectivity for faster charging and data-transfer.
Total Recall: Records over 100,000 records with date and time stamps.
ISO Compliant: The readers have the RFID technology to read all the ISO protocols; Trovan ISO FDX-B microchips and Trovan Unique FDX-A, certified in compliance with ISO11784 and ISO11785 standards.
Ultra-Wide Viewing: The new E-Ink display results in high contrast for ultra-wide viewing angles in sunlight.
| Dimensions | 192mm x 97mm x32mm |
| Weight | 250g |
| IP Rating |
IP66 |
| Compliant With ISO |
ISO11784 and ISO11785 standards compliant |
|
Reading Distance |
Trovan: 5cm ISO Midi: 5cm ID100 Midi: 3cm
|
|
Reading Capability |
Reads all ISO FDX-B chips Reads Trovan Unique FDX-A chips |
| Memory Capacity | >100000 records with date & time stamp |
| Connectivity | USB-C, Bluetooth Low Energy |
| Screen | E Ink display (48x22mm OR 212x104 pixels) Ultra-wide viewing angle and contrast. Readable in sunlight. |
| Battery |
Rechargeable Li-Ion, 3.7V 3200mAh. |
| Battery Life |
3 hours of continuous work (button continuously pressed) |
| Operating Temperature |
-0 – +45°C |
| Storage Temperature | -20 - +60°C |
| Operating Frequency |
128kHz |
| Housing Material |
ABS |
